Predictive Line

A forecasting or predictive line chart consists of a basic trend line for all data up until the current date/time, along with a forecast line showing predicted changes beyond the current date/time.

The Method To Use

The method is s.plt.predictive_line().

It must contain the following input variables:

order: int
x: str
data: Union[str, DataFrame, List[Dict]]

Accepts the following input variables as optional:

y: Optional[Union[List[str], str]]
min_value_mark: Optional[str]
max_value_mark: Optional[str]
color_mark: str
data: Union[List[str], DataFrame, List[Dict]]
x_axis_name: Optional[str]
y_axis_name: Optional[str]
title: Optional[str]
rows_size: Optional[int]
cols_size: Optional[int]
padding: Optional[List[int]]
show_values: Optional[List[str]]
option_modifications: Optional[Dict]
variant: Optional[str]

Examples

1. Default Configuration

data = [
    {'date': dt.date(2021, 1, 1), 'x': 4, 'y': 5},
    {'date': dt.date(2021, 1, 2), 'x': 7, 'y': 6},
    {'date': dt.date(2021, 1, 3), 'x': 4, 'y': 7},
    {'date': dt.date(2021, 1, 4), 'x': 9, 'y': 8},
    {'date': dt.date(2021, 1, 5), 'x': 3, 'y': 9},
]

s.plt.predictive_line(
    data=data, x='date', order=0,
    min_value_mark=3, max_value_mark=4,
    rows_size=2, cols_size=12,
)

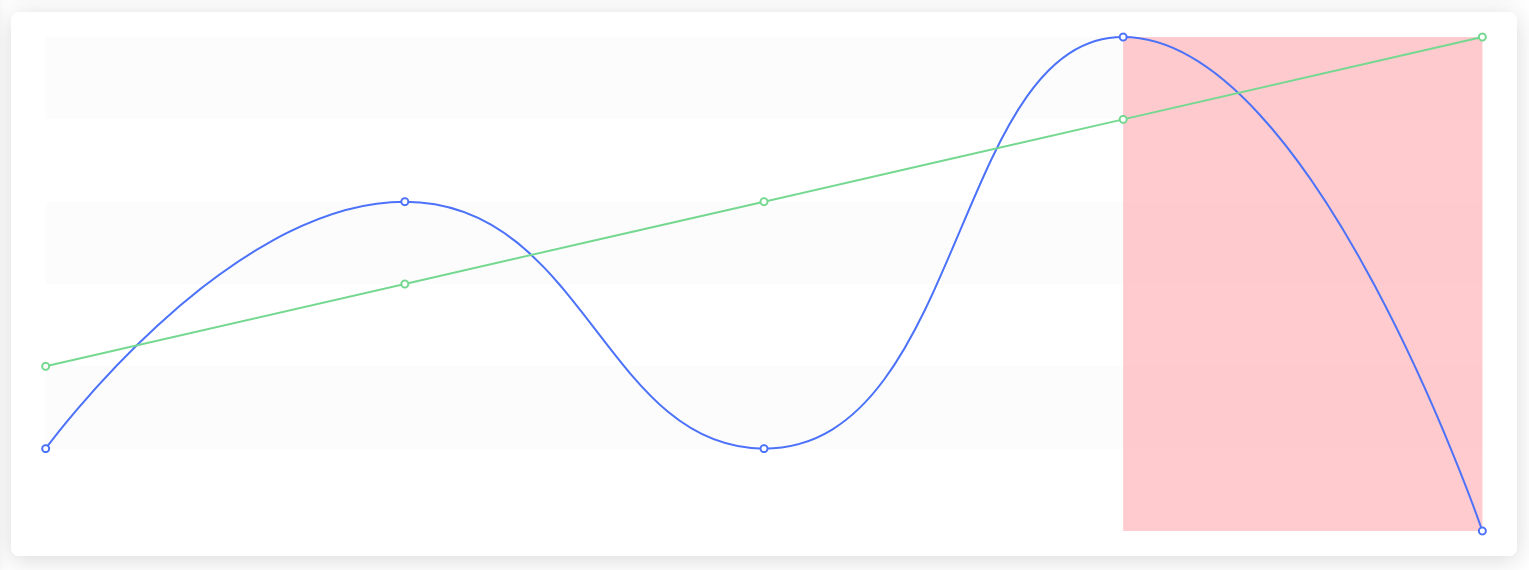

Predictive line chart with default configuration

2. Customization And Context

It is possible to personalize the title of the chart, name of each axis, the legend, size and add padding. One example could be obtained using:

data = [
    {'date': dt.date(2021, 1, 1), 'gas': 4, 'oil': 5},
    {'date': dt.date(2021, 1, 2), 'gas': 7, 'oil': 6},
    {'date': dt.date(2021, 1, 3), 'gas': 4, 'oil': 7},
    {'date': dt.date(2021, 1, 4), 'gas': 9, 'oil': 5},
    {'date': dt.date(2021, 1, 5), 'gas': 3, 'oil': 9},
    {'date': dt.date(2021, 1, 6), 'gas': 6, 'oil': 5},
    {'date': dt.date(2021, 1, 7), 'gas': 8, 'oil': 6},
]

s.plt.predictive_line(
    data=data, x='date', order=0,
    min_value_mark=3, max_value_mark=4,
    rows_size=2, cols_size=12, padding='0,0,0,1',
    title='Fossil price evolution - first days 2021.'
)

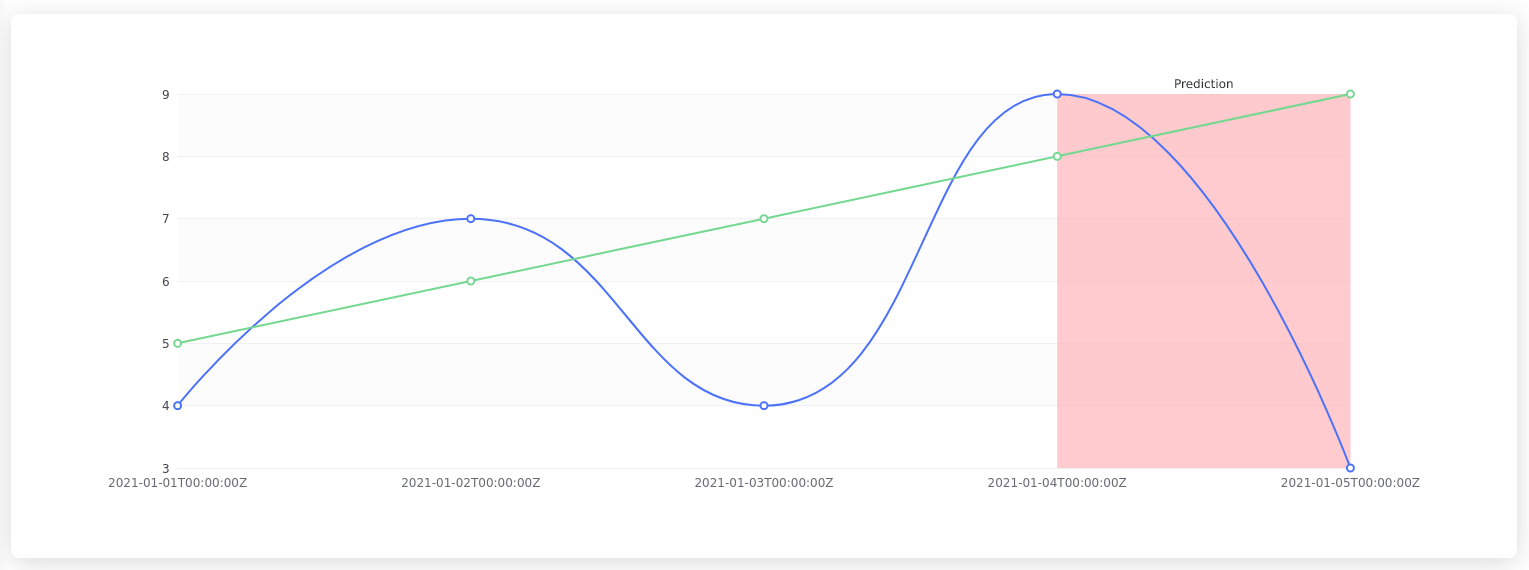

The predictive line chart is completely personalized. Note the space before the component with padding='0,0,0,1'.

Variants

By setting the parameter variant to the following values the appearance of the chart can be changed:

Clean

variant = "clean"

Minimal

Featured Content

Changing the Menu Path The menu_path can be modified.

Using the Grid

It is possible to use any number of rows.
