# Extended Example ## Aim Taking into account the information displayed on the previous page, [minimal-app-example](https://docs.shimoku.com/dev/quickstart/minimal-app-example "mention"), it is necessary to use a more developed implementation example that incorporates more features and functionalities in order to provide a broader selection of the platform capabilities. *** ## First Steps Starting with the libraries, it is essential to be able to handle them so your program can use all the extensions and additional features it requires. Intuitively, the most important library to add is the one that enables all the Shimoku magic: ```python from shimoku import Client ``` Next, you may want to use some operating system and environment libraries, with the aim of enabling different functionalities, such as defining [environment-variables](https://docs.shimoku.com/dev/building-web-app/environment/environment-variables "mention"). ```python import time import os from os import getenv from dotenv import load_dotenv from io import StringIO ``` Finally, it is time to add all those commonly used libraries that provide technical extensions and features. For instance, these three are frequently used for a variety of purposes: ```python import numpy as np import pandas as pd import sklearn as sk ``` ## Authentication and Remote Access In order to be able to use the Shimoku remote services, it is required to follow proper identification and create a Client object, using the Shimoku library. If more guidance about the authentication process is needed, check the [environment-variables](https://docs.shimoku.com/dev/building-web-app/environment/environment-variables "mention") section. ```python load_dotenv() #load the .env file to acces your credentials s = Client( access_token=os.getenv("SHIMOKU_TOKEN"), universe_id=os.getenv("UNIVERSE_ID"), verbosity="INFO", async_execution=True ) s.set_workspace(uuid=os.getenv("WORKSPACE_ID")) ``` ## Setting the Board Boards are grouping elements ideal for optimal organization and structuring in a given universe. For more related information, check [managing-boards](https://docs.shimoku.com/dev/building-web-app/management/managing-boards "mention") and [managing-universes](https://docs.shimoku.com/dev/building-web-app/management/managing-universes "mention"). ```python s.set_board('Car company') ``` ## Setting the Menu Path Menus are pathways that help you distribute the content in a clear and understandable way in a given board. Defining them with a relevant name is crucial for working in a structured environment. More information about them can be found on [menu](https://docs.shimoku.com/dev/building-web-app/menu "mention"). ```python s.set_menu_path(name="Sales Report") ``` ## Reading Data To access your data in a way that is maleable and optimal, use the `Pandas` library to import your file and convert it into a dataframe variable. ```python dataframe = pd.read_csv("car_data.csv").to_csv(index=False).encode() ``` {% hint style="info" %} Depending on the characteristics of your file, it may be necessary to add parameters like **delimiter** or **header**. {% endhint %} ## Developing Your Features Having set up the previous steps, you are ready to start developing your features, and showcasing them using Shimoku's powerful tools. In this example, some simple functionalities done on a car sales report will be showcased in the Shimoku.io site. *** Firstly, some indicators can be created. They are ideal for simple information showcasing, for instance, the total number of cars that have been sold. When creating an indicator, first, the data structure has to be created and, afterwards, it is as simple as plotting said indicator. Check [indicators](https://docs.shimoku.com/dev/elements/charts/indicators "mention") for more guidance in this topic. ```python total_sales = { "description": "total number of sales done in the current natural year", "title": "Total Car Sales", "value": len(dataframe) } total_revenue = { "description": "total revenue accomplished in the current natural year", "title": "Total Revenue", "value": dataframe['price'].sum() } s.plt.indicator( data=total_sales, order=1, rows_size=8, cols_size=12, ) s.plt.indicator( data=total_revenue, order=2, rows_size=8, cols_size=12, ) ```

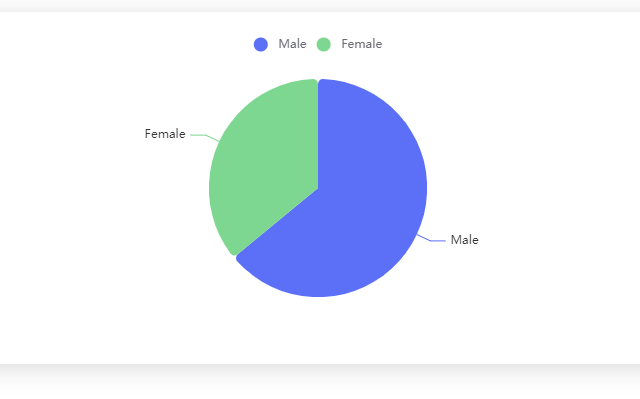

Next, it can be interesting to use a pie chart to highlight any information desired. There are many types of charts, each one best suited for different application. Have a look at all the different charts provided at [charts](https://docs.shimoku.com/dev/elements/charts "mention").
gender_counts = dataframe['gender'].value_counts()

gender_data = [
    {'gender': 'Male', 'value': gender_counts['Male']/gender_counts*100},
    {'gender': 'Female', 'value': gender_counts['Female']/gender_counts*100}
]

s.plt.pie(
    data=gender_data, names='gender', values='value',
    order=3, rows_size=2, cols_size=12,
)
## Using Bento Boxes Bento box is a tool that enables us to create an intuitive separation between content by providing different shared spaces between plotted elements that have the same context. It's simple usage only requires the user to set the Bento box space, plot the elements that are going to be placed inside and finally popping out of the Bento box. Take a look at the [bento-box](https://docs.shimoku.com/dev/elements/create-your-own-charts/bento-box "mention") for more related information.
#here goes the plotting data declaration previously explained

s.plt.set_bentobox(cols_size=8, rows_size=3) #set bentobox

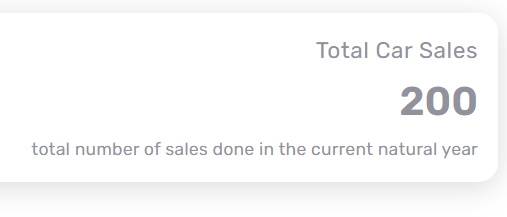

s.plt.indicator(
    data=total_sales, order=0,
    rows_size=8, cols_size=12,
)

s.plt.indicator(
    data=total_revenue, order=1,
    rows_size=8, cols_size=12,
)

s.plt.pie(
    data=gender_data, names='gender', values='value',
    order=2, rows_size=2, cols_size=12,
)


s.plt.pop_out_of_bentobox() #exit bentobox
## Using Tabs Tabs give the option to separate elements further by grouping them, and only showing the ones selected in that specific tab. Check [tabs](https://docs.shimoku.com/dev/elements/features-and-navigation/tabs "mention") for further information. ```python s.plt.set_tabs_index(('Charts', 'Indicators Tab'), order=0) #set tab box s.plt.indicator( data=total_sales, order=1, rows_size=8, cols_size=12, ) s.plt.indicator( data=total_revenue, order=2, rows_size=8, cols_size=12, ) s.plt.change_current_tab('Pie Tab') #change tab s.plt.pie( data=gender_data, names='gender', values='value', order=2, rows_size=2, cols_size=12, ) s.plt.pop_out_of_tabs_group() #exit tab box ```

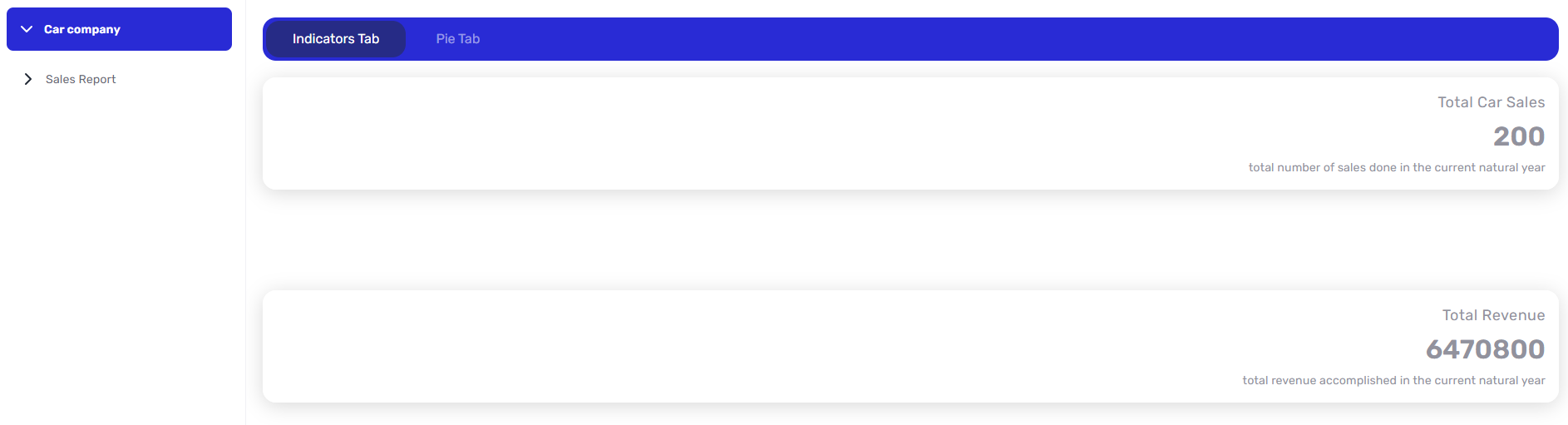

Indicators Tab selected

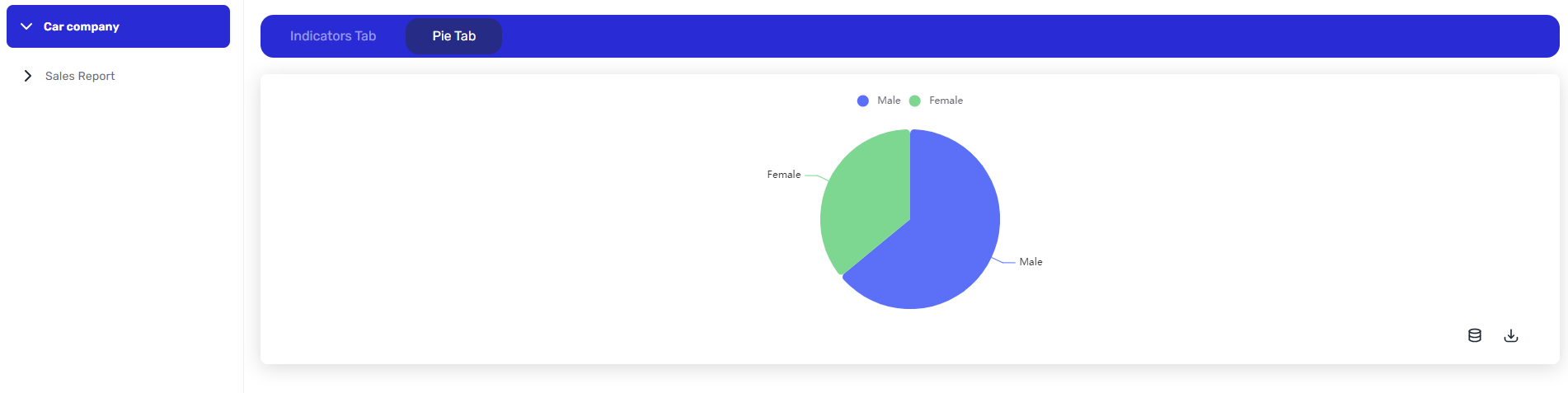

Pie Tab selected

## **Sharing Your Board** Shimoku's sharing functionality transforms the way you incorporate analytics into web platforms, enabling you to deliver personalized insights to your audience and add significant value to your product offerings with minimal development efforts. *** Update your persisted Board with the CLI in Shimoku Cloud to make it shareable. ```bash > shimoku cloud update board --board {YOUR BOARD NAME OR ID} --is-public ``` Done! Finally, to access the link through the Front End, you must click on the chain icon of your `board.`
You can find further information about our Shared boards by reading the [shared-links](https://docs.shimoku.com/dev/cloud-and-community/shared-links "mention") section.
