Box with button

Creates a colorful ribbon that accepts text, a background image and a link embedded on a button.
WARNING avoid special symbols such as (, ), [, ] and similar in the texts of this component because it could break the look&feel
Input variables:
href: str
title: str
line: str
button_text: str
And accepts the following input variable as optional:
background_url: Optional[str]
Example of use:
# create the box_with_button component
box_html = box_with_button(
href='https://cutt.ly/qJANGcX',
title='Success case',
line='AI Explained',
button_text='Visit now!',
)
shimoku.plt.html(
box_html, menu_path='new-html4',
order=0, rows_size=2, cols_size=12,
)

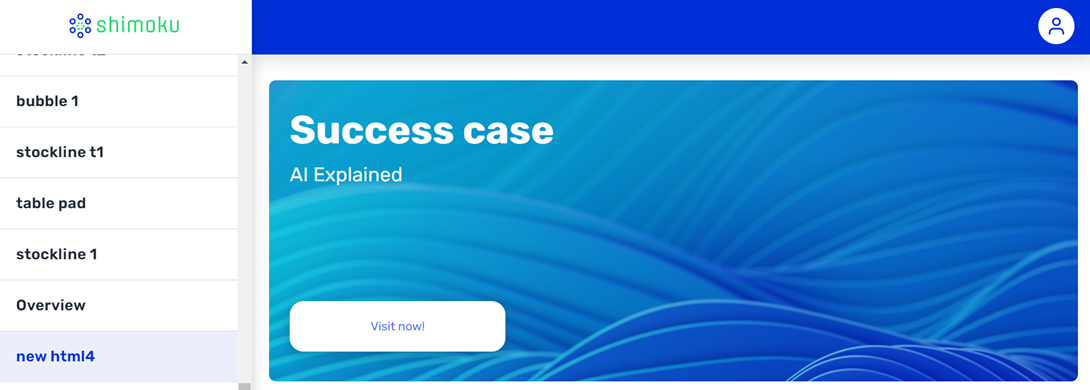

The result is:
You can add text with t a very nice background to highlight and use as an indication of what will be linked in the button. A new window will open with the link.
You can resize, and change position at will, for example:
# box_with_button component
box_html = box_with_button(
href='https://cutt.ly/qJANGcX',
title='Success case',
line='AI Explained',
button_text='Visit now!',
)
shimoku.plt.html(
box_html, menu_path='new-html4a',
order=0, rows_size=2, cols_size=5,
padding='1,0,0,6',
)

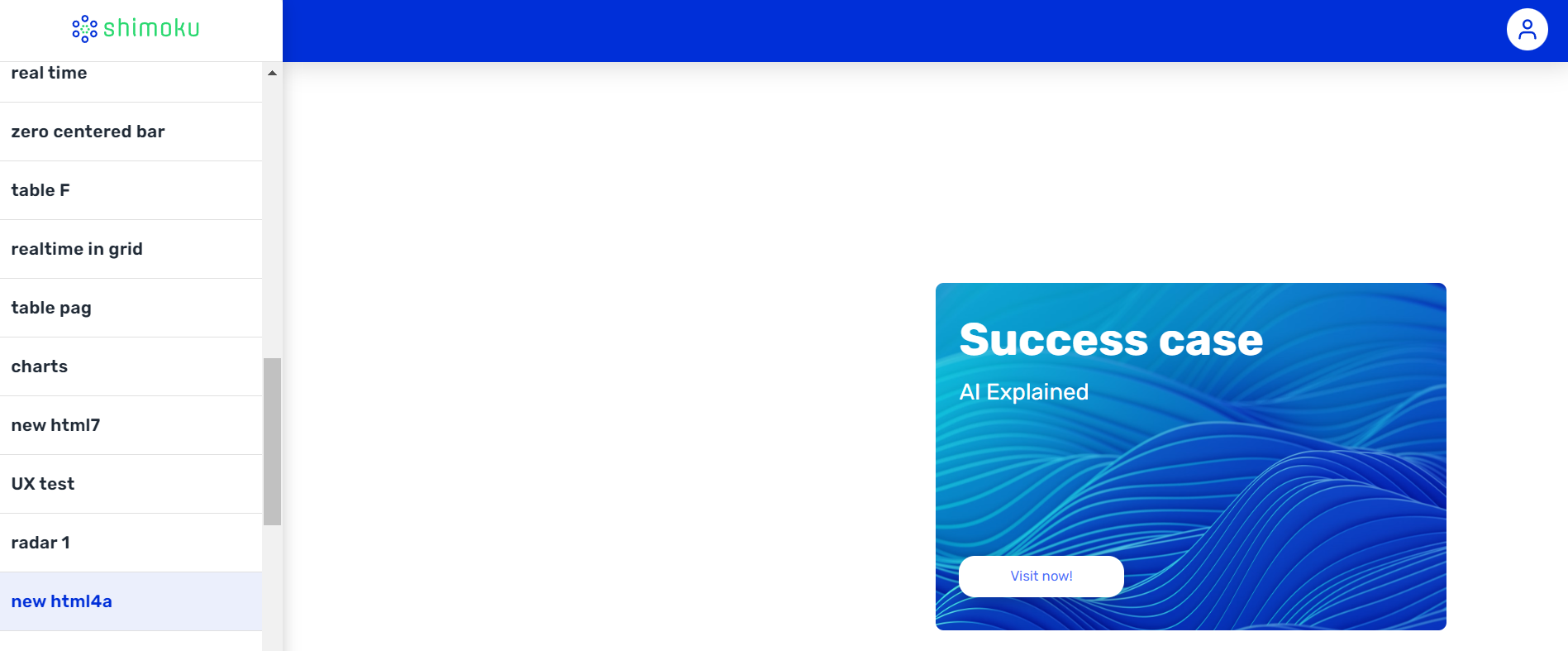

Note the use of cols_size=5, padding='1,0,0,6', that change the size and position of the component. The order of spaces is Top, Right, Bottom, Left.
More on how to use the Grid.
