iFrame

An IFrame (Inline Frame) is an HTML document embedded inside another HTML document on a website. The IFrame HTML element is often used to insert content from another source or monitor a website (or more than one).
The method to use
The method is shimoku.plt.iframe()
It must contain the following input variables:
menu_path: str
url: str
order: int
And accepts the following input variables as optional:
title: Optional[str]
height: Optional[int]
rows_size: Optional[int]
cols_size: Optional[int]
padding: Optional[List[int]]
Video demonstration of the HTML iFrame
The iFrame settings and usage.
Examples
1. Default configuration
 This one is configured to use the website https://teamaspar.com​
url = 'https://teamaspar.com'
​
shimoku.plt.iframe(
        url=url,
        menu_path='test/iframe-1',
        order=0,
        rows_size=2, cols_size=12,
)

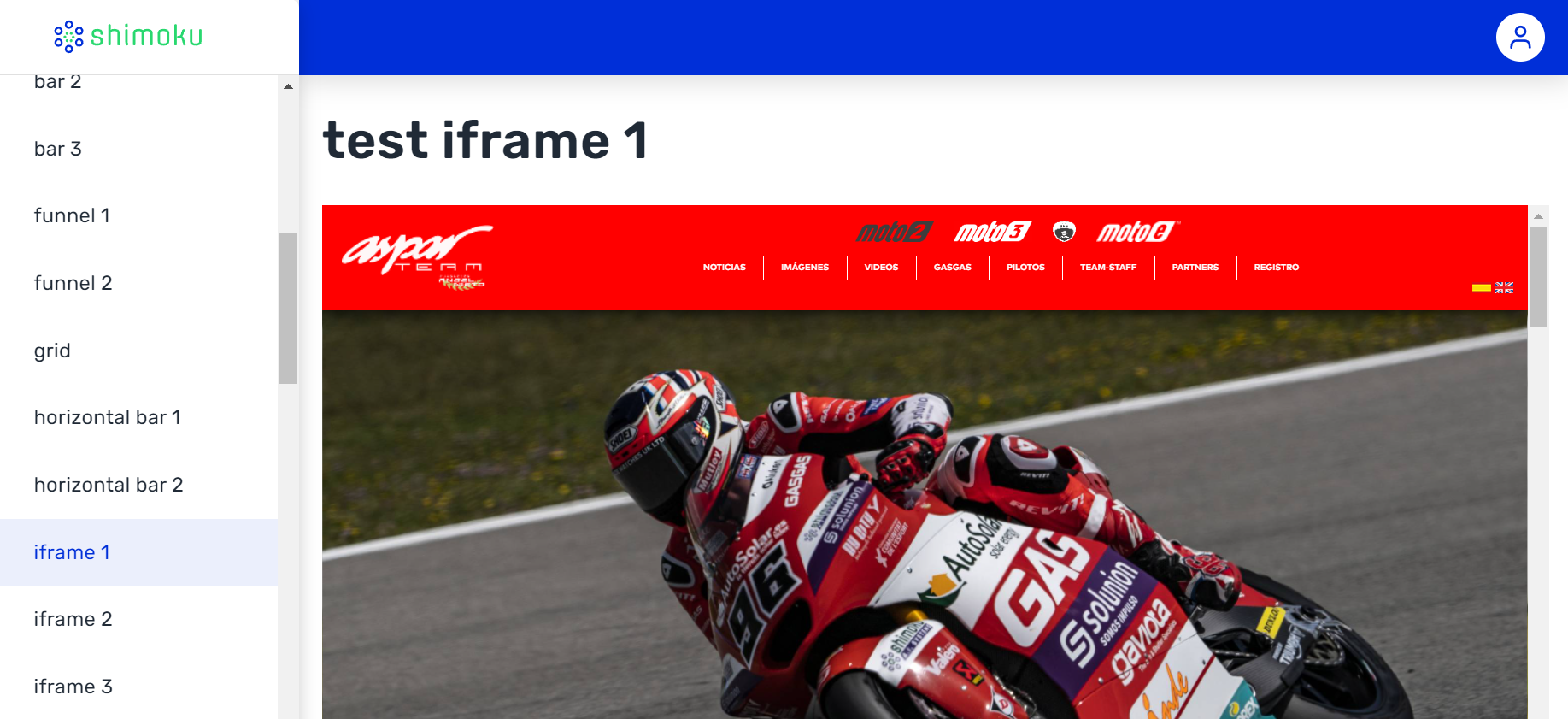

The result is:
The iFrame is in the default configuration.
2. Title for the iframe, size and padding
You can set a title for every site to monitor:
url = 'https://teamaspar.com'
​
shimoku.plt.iframe(
    url=url,
    menu_path='test/iframe-2',
    order=0,
    rows_size=2, cols_size=8,
    padding='0,0,0,3',
    title='TEAM ASPAR',
)

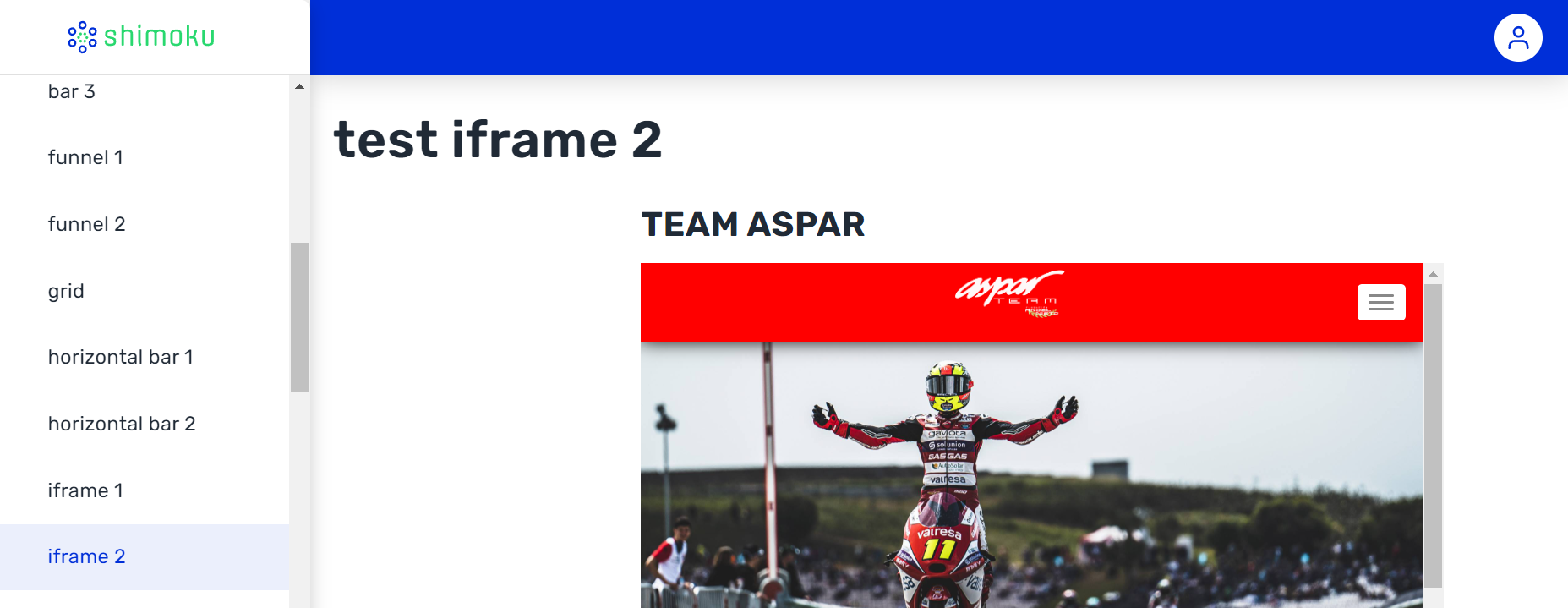

The result is:
Note the space before the component using padding='0,0,0,3', and size with cols_size=8.
You can also add sites to monitor, in the same menu_path='test/iframe-3'
 This is an example:
url = 'https://www.teamaspar.com/'
​
shimoku.plt.iframe(
        url=url,
        menu_path='test/iframe-3',
        order=0,
        rows_size=2, cols_size=5,
        title='TEAM ASPAR',
)
​
url = 'https://www.marca.com/'
​
shimoku.plt.iframe(
        url=url,
        menu_path='test/iframe-3',
        order=1,
        rows_size=2, cols_size=5,
        padding='0,0,0,1',
        title='MARCA',
)

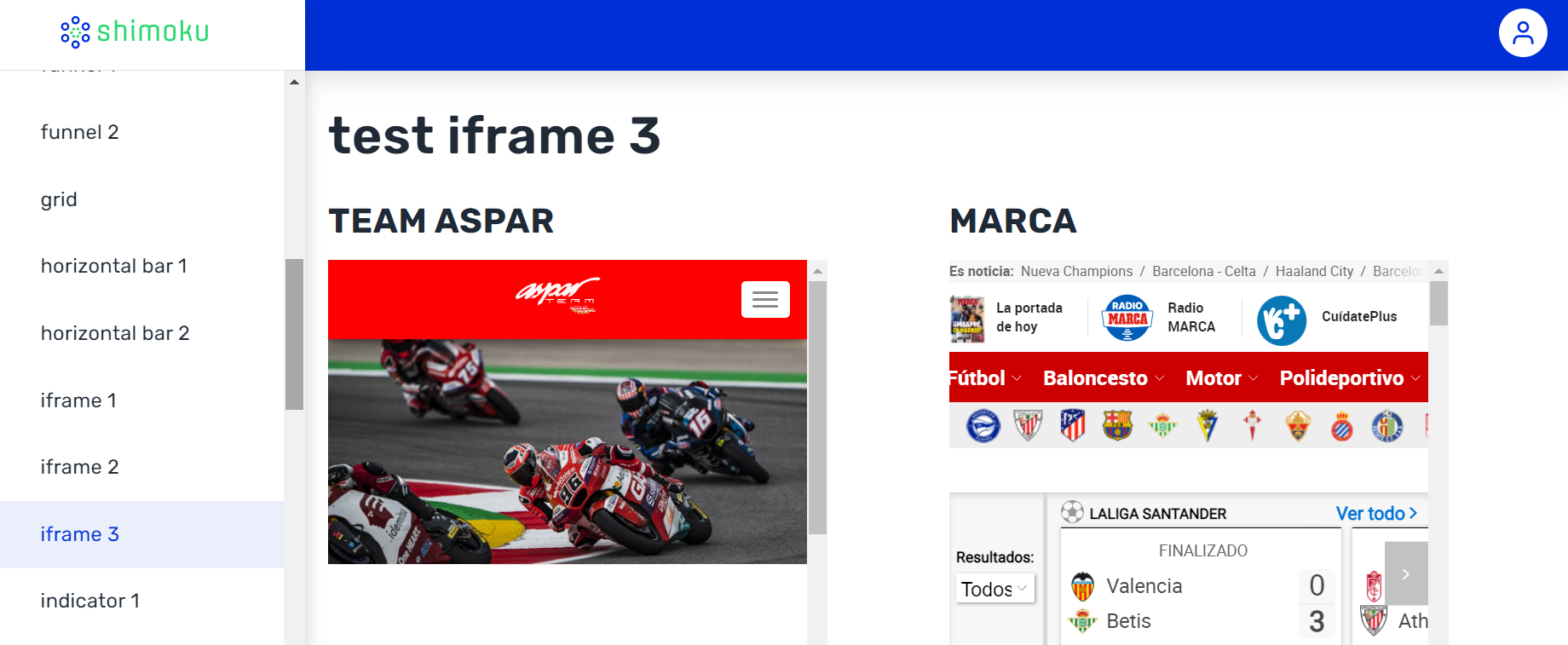

The result is:
Two URLs are being monitored at the same path, spaced with padding='0,0,0,1'.
Featured content
​Changing menu_path
The menu_path can be modified.

​Using the Grid​
It is possible to use any number of rows.
