Table

Resources on how to build a table with your data, and personalize it.
The method to use
The method is shimoku.plt.table()
It must contain the following input variables:
data: Union[str, DataFrame, List[Dict]]
menu_path: str
order: int
horizontal_scrolling: bool
overwrite: bool
And accepts the following input variables as optional:
title: Optional[str] = None
filter_columns: Optional[List[str]] = None
sort_table_by_cols: Optional[List] = None
Examples
1. Default configuration
This code generates a table with two filters:
​
data_ = [
        {'date': dt.date(2021, 1, 1), 'x': 5, 'y': 5, 'filtA': 'A', 'filtB': 'B'},
        {'date': dt.date(2021, 1, 2), 'x': 6, 'y': 5, 'filtA': 'B', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 3), 'x': 4, 'y': 5, 'filtA': 'C', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 4), 'x': 7, 'y': 5, 'filtA': 'B', 'filtB': 'T'},
        {'date': dt.date(2021, 1, 5), 'x': 3, 'y': 5, 'filtA': 'A', 'filtB': 'Z'},
]
​
filter_columns: List[str] = ['filtA', 'filtB']
​
shimoku.plt.table(
        data=data_,
        menu_path='test/table-1',
        order=0,
        filter_columns=filter_columns,
)

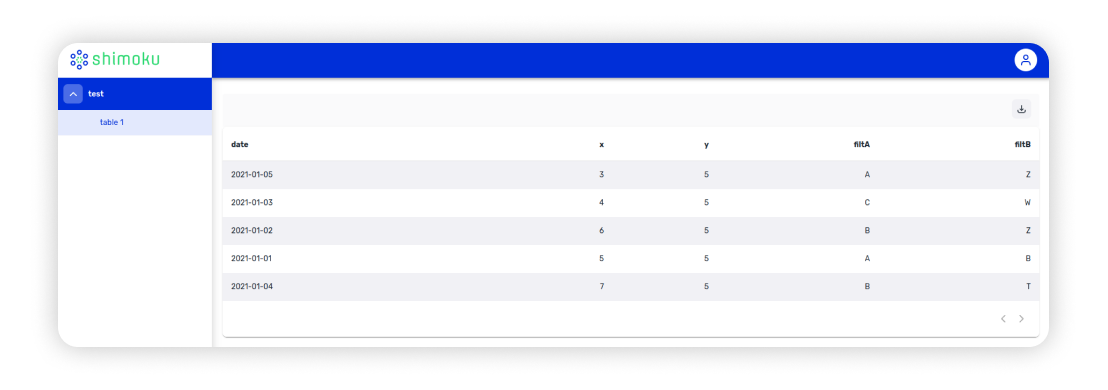

The result is:
The table is in the default configuration, it may be needed to scroll down the page.
The filters can be activated by clicking on them, and selecting the desired result:
Activating any filter by clicking on it.
Filtering for B using the filter filtA:
The choice of the filter appears as you select B.
The result is:
The result of a filter selection is shown.
You can rearrange alphabetically (direct or reverse order) the content of the table by clicking on a filter of your choice, in the body of the table. The result is like this:
Note the selection of filtA to show the alphabetical order.
2. Modifying the data frame and adding title:
You can personalize the table, changing column names in the input data frame, and add a title:
data_ = [
        {'date': dt.date(2021, 1, 1), 'Bus1': 5, 'Bus2': 5, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 2), 'Bus1': 6, 'Bus2': 7, 'filtA': 'B', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 3), 'Bus1': 4, 'Bus2': 5, 'filtA': 'A', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 4), 'Bus1': 7, 'Bus2': 8, 'filtA': 'B', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 5), 'Bus1': 3, 'Bus2': 5, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 6), 'Bus1': 5, 'Bus2': 5, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 7), 'Bus1': 6, 'Bus2': 7, 'filtA': 'B', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 8), 'Bus1': 4, 'Bus2': 5, 'filtA': 'A', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 9), 'Bus1': 7, 'Bus2': 5, 'filtA': 'B', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 10), 'Bus1': 3, 'Bus2': 7, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 11), 'Bus1': 5, 'Bus2': 5, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 12), 'Bus1': 6, 'Bus2': 5, 'filtA': 'B', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 13), 'Bus1': 4, 'Bus2': 8, 'filtA': 'A', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 14), 'Bus1': 7, 'Bus2': 5, 'filtA': 'B', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 15), 'Bus1': 3, 'Bus2': 5, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 16), 'Bus1': 5, 'Bus2': 8, 'filtA': 'A', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 17), 'Bus1': 6, 'Bus2': 5, 'filtA': 'B', 'filtB': 'Z'},
        {'date': dt.date(2021, 1, 18), 'Bus1': 4, 'Bus2': 7, 'filtA': 'A', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 19), 'Bus1': 7, 'Bus2': 5, 'filtA': 'B', 'filtB': 'W'},
        {'date': dt.date(2021, 1, 20), 'Bus1': 3, 'Bus2': 7, 'filtA': 'A', 'filtB': 'Z'},
    ]
​
filter_columns: List[str] = ['filtA', 'filtB']
​
shimoku.plt.table(
    data=data_,
    menu_path='test/table-3',
    order=0,
    title="Amount of Buses in daily routes",
    filter_columns=filter_columns,
    sort_table_by_col={'date': 'asc'},
)

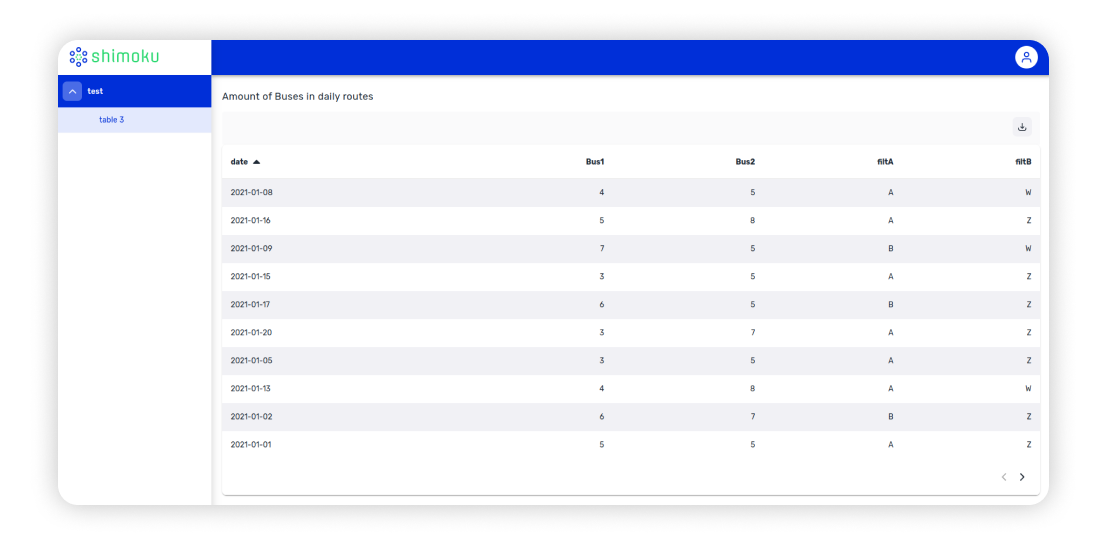

And get this result:
Table with more data and title.
Pagination

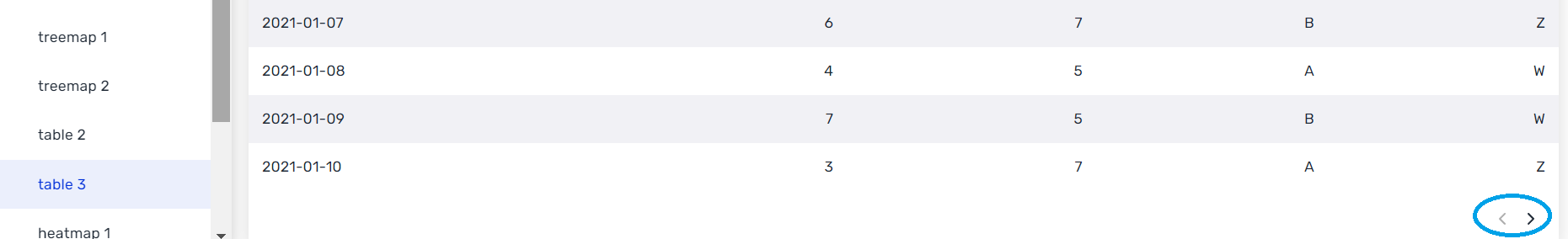

If you build a table with more than 10 rows, more pages are added and to show the entire table just click the > symbol:
Featured content
​Changing menu_path
The menu_path can be modified.

​Using the Grid​
It is possible to use any number of rows.
